A-2Y2Yv S(H115)/S(H145)/S(H95)



Applications :

  • The cables are designed for general uses in protective devises in railways signalling networks, and are suitable for installation in ducts.

Standards :

  • Dlk 1.013.107y
  • Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
  • Dlk 1.013.110y

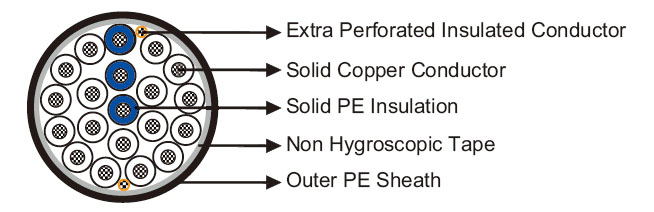

Construction :

  • Conductors : Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.
  • Insulation : Solid polyethylene.
  • Stranding : Single conductors are helically stranded in concentric layers. Cables from 14 conductors on, have two extra conductors with perforated insulation (surveillance conductors).
  • Core Wrapping : Plastic tape(s) with overlapping.
  • Outer Sheath : Low density polyethylene.

Type Codes :

  • A- outdoor cable
    2Y solid PE conductor insulation
    2Yv PE sheath with increased wall thickness
    S signal cable
    LG layer stranding
    H (n) operating capacity

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 0.9 1.4 1.8
    Maximum Conductor Resistance Ω/km 28.9 11.9 7.2
    Minimum Insulation Resistance @500 V DC (1min) MΩ.km 10000 10000 10000
    Maximum Conductor Capacitance @800Hz (AC) nF/km 115 145/95* 145/95*
    Dielectric Strength, conductor to conductor (DC voltage 1min) V 3535 3535 3535
    Surveillance Conductors
      Loop resistance, maximum Ω/km 190 190 190
      Insulation resistance
        - dry cable core, minimum MΩ.km 1000 1000 1000
        - wet cable core, maximum KΩ.km 30 30 30
    Operating Voltage AC/DC V 420/600 420/600 420/600
    Test Voltage@50 Hz 1 min
        Core to Core Veff 2500 2500 2500
        Core to Screen Veff 2500 2500 2500
  • *The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 7.5 x OD.
  • Operating Temperature : -40°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



  A-2Y2Yv n x1x 0.9 S(H115)



Cable Code Number of conductors
(n)		 Nominal Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight
kg/km
0.9mm Conductor, 1.55mm Insulated Wire
RS107y-2Y2Yv-2C0.9-S(H115) 2 2.0 9.0 60
RS107y-2Y2Yv-4C0.9-S(H115) 4 2.0 9.0 75
RS107y-2Y2Yv-7C0.9-S(H115) 7 2.0 11.0 100
RS107y-2Y2Yv-10C0.9-S(H115) 10 2.0 12.0 130
RS107y-2Y2Yv-14C0.9-S(H115) 14 2.0 13.0 170
RS107y-2Y2Yv-20C0.9-S(H115) 20 2.0 14.0 220
RS107y-2Y2Yv-24C0.9-S(H115) 24 2.0 15.0 260
RS107y-2Y2Yv-30C0.9-S(H115) 30 2.2 16.0 310
RS107y-2Y2Yv-40C0.9-S(H115) 40 2.2 17.0 380
RS107y-2Y2Yv-50C0.9-S(H115) 50 2.2 19.0 460
RS107y-2Y2Yv-60C0.9-S(H115) 60 2.2 20.0 540
RS107y-2Y2Yv-80C0.9-S(H115) 80 2.2 22.0 690
RS107y-2Y2Yv-100C0.9-S(H115) 100 2.2 25.0 850
RS107y-2Y2Yv-120C0.9-S(H115) 120 2.2 26.0 990
RS107y-2Y2Yv-140C0.9-S(H115) 140 2.2 28.0 1150
RS107y-2Y2Yv-160C0.9-S(H115) 160 2.2 29.0 1260
RS107y-2Y2Yv-180C0.9-S(H115) 180 2.2 32.0 1460
RS107y-2Y2Yv-200C0.9-S(H115) 200 2.2 32.0 1600





  A-2Y2Yv n x1x 1.4/1.8 S(H145)



Cable Code Number of conductors
(n)		 Nominal Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight
kg/km
1.4mm Conductor, 2.2mm Insulated Wire
RS107y-2Y2Yv-4C1.4-S(H145) 4 2.0 11.0 120
RS107y-2Y2Yv-7C1.4-S(H145) 7 2.0 12.0 180
RS107y-2Y2Yv-10C1.4-S(H145) 10 2.0 15.0 240
RS107y-2Y2Yv-14C1.4-S(H145) 14 2.2 16.0 320
RS107y-2Y2Yv-20C1.4-S(H145) 20 2.2 17.0 430
RS107y-2Y2Yv-24C1.4-S(H145) 24 2.2 19.0 500
RS107y-2Y2Yv-30C1.4-S(H145) 30 2.2 20.0 600
RS107y-2Y2Yv-40C1.4-S(H145) 40 2.2 22.0 770
RS107y-2Y2Yv-50C1.4-S(H145) 50 2.2 24.0 950
RS107y-2Y2Yv-60C1.4-S(H145) 60 2.2 26.0 1120
RS107y-2Y2Yv-80C1.4-S(H145) 80 2.2 29.0 1450
RS107y-2Y2Yv-100C1.4-S(H145) 100 2.2 33.0 1810
RS107y-2Y2Yv-120C1.4-S(H145) 120 2.2 35.0 2140
RS107y-2Y2Yv-140C1.4-S(H145) 140 2.2 37.0 2470
RS107y-2Y2Yv-160C1.4-S(H145) 160 2.2 39.0 2800
RS107y-2Y2Yv-180C1.4-S(H145) 180 2.2 42.0 3140
RS107y-2Y2Yv-200C1.4-S(H145) 200 2.2 43.0 3460
1.8mm Conductor, 2.7mm Insulated Wire
RS107y-2Y2Yv-4C1.8-S(H145) 4 2.0 12.0 170
RS107y-2Y2Yv-7C1.8-S(H145) 7 2.0 14.0 260
RS107y-2Y2Yv-10C1.8-S(H145) 10 2.0 17.0 355
RS107y-2Y2Yv-14C1.8-S(H145) 14 2.2 18.0 475
RS107y-2Y2Yv-20C1.8-S(H145) 20 2.2 21.0 655
RS107y-2Y2Yv-24C1.8-S(H145) 24 2.2 22.0 760
RS107y-2Y2Yv-30C1.8-S(H145) 30 2.2 24.0 930
RS107y-2Y2Yv-40C1.8-S(H145) 40 2.2 27.0 1210
RS107y-2Y2Yv-50C1.8-S(H145) 50 2.2 29.0 1480
RS107y-2Y2Yv-60C1.8-S(H145) 60 2.2 31.0 1760
RS107y-2Y2Yv-80C1.8-S(H145) 80 2.2 35.0 2310
RS107y-2Y2Yv-100C1.8-S(H145) 100 2.2 40.0 2860
RS107y-2Y2Yv-120C1.8-S(H145) 120 2.2 42.0 3390
RS107y-2Y2Yv-140C1.8-S(H145) 140 2.2 46.0 3930
RS107y-2Y2Yv-160C1.8-S(H145) 160 2.2 49.0 4500
RS107y-2Y2Yv-180C1.8-S(H145) 180 2.2 52.0 5100
RS107y-2Y2Yv-200C1.8-S(H145) 200 2.2 53.0 5600





  A-2Y2Yv n x1x 1.4/1.8 S(H95)



Cable Code Number of conductors
(n)		 Nominal Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight
kg/km
1.4mm Conductor, 2.7mm Insulated Wire
RS108y-2Y2Yv-10C1.4-S(H95) 10 2.0 16.0 270
RS108y-2Y2Yv-14C1.4-S(H95) 14 2.0 18.0 350
RS108y-2Y2Yv-20C1.4-S(H95) 20 2.0 20.0 470
RS108y-2Y2Yv-30C1.4-S(H95) 30 2.2 24.0 670
RS108y-2Y2Yv-50C1.4-S(H95) 50 2.2 29.0 1050
1.8mm Conductor, 3.4mm Insulated Wire
RS108y-2Y2Yv-10C1.8-S(H95) 10 2.0 19.0 400
RS108y-2Y2Yv-14C1.8-S(H95) 14 2.2 21.0 540
RS108y-2Y2Yv-20C1.8-S(H95) 20 2.2 24.0 730
RS108y-2Y2Yv-30C1.8-S(H95) 30 2.2 28.0 1050
RS108y-2Y2Yv-50C1.8-S(H95) 50 2.2 36.0 1700





UV Resistant
Water Resistant
Rated Voltage

Laid In Ducts
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
